Dobbeltgulv Connect 14- L1 - 270 - skuffer
D0161400010
- Width:
- 1470
- Depth:
- 1575
- Height:
- 270
- NetWeight:
- 14.15
Alle dimensjoner er i mm og alle vekter i kg.

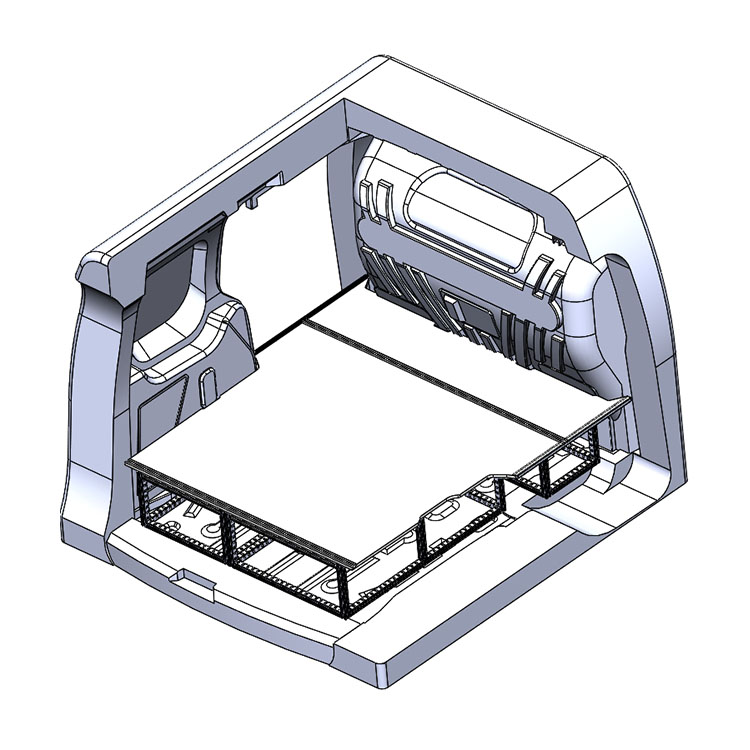

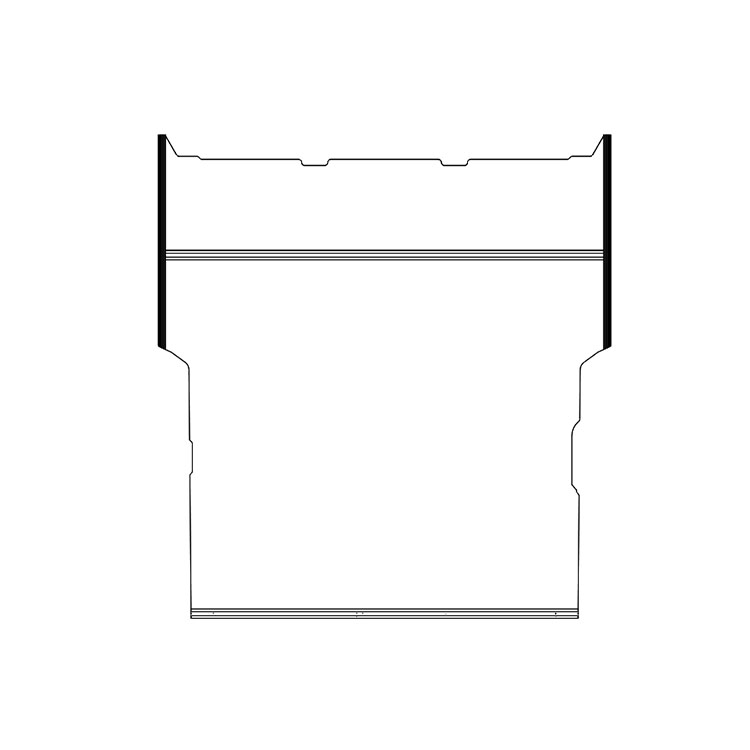

Double floor for a Ford Connect L1 2016-. The floor is designed to fit an extra-long drawer solution with one drawer unit 486x972x270 and one 648x972x270 coming out from the rear doors, and one drawer unit 324x1296x270 coming out from the side door.
The floor comes complete with aluminum transverse rails, edging strips and all brackets required for the installation.
The double floor is installed using Modul-System glue, which is supplied separately.
NOTE! Drawer units are not included and must be ordered separately.
